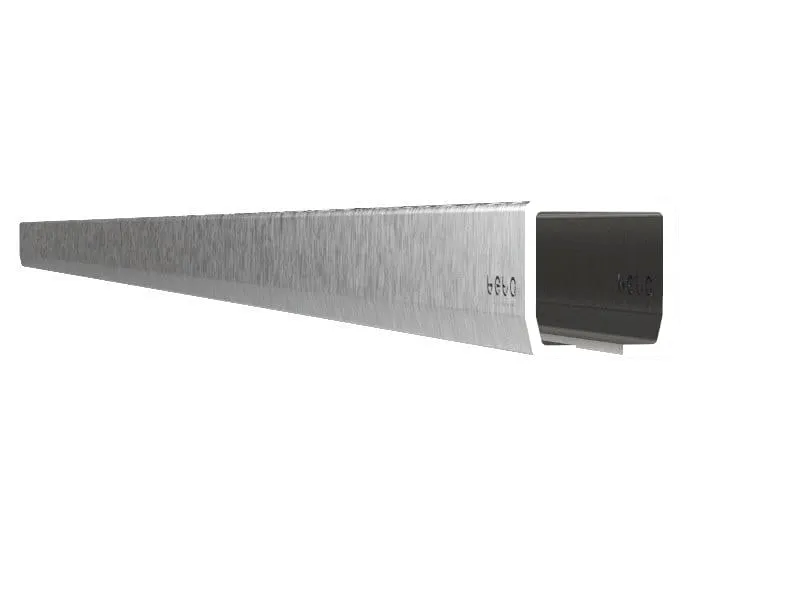

C-Profile-Cornice Cable Carrying Rail
Feston System

Ürün Genel Bakış

1. Product Definition and Engineering Function



The BETA-CTR Series C-Profile Rails are robust, modular systems designed to safely, orderly, and tangle-free carry power and data cables along the horizontal axis of mobile lifting equipment (crane trolleys, bridges, monorail systems).

These systems are manufactured to international standards and are offered in high-load galvanized steel and corrosion-resistant stainless steel options, ensuring operational integrity in various industrial environments.



2. Technical Specifications and Dimensions




Parameter Value Purpose / Compatibility
Profile Section 28x30 mm / 30x32 mm Suitable for Light to Medium Duty Applications
Wall Thickness (Gauge) 1.5 mm Ensures High Rigidity and Durability
Standard Length 4 Meters Facilitates Logistics and Assembly
Material Option 1 Galvanized Steel (St 37) Economical solution for indoor and normal environments
Material Option 2 Stainless Steel (AISI 304/316 opt.) High resistance to corrosion (Chemical, damp, outdoor environments)
Max. Travel Speed (Please specify, e.g., 100 m/min) Suitable for High-Speed Automation Lines
Mounting Suitable for welding and bolted connections Flexible and secure installation

3. Structural Components and Key Advantages



The C-Rail system consists of critical components necessary for a complete energy supply solution:

  • Flat Cable Trolleys: Plastic or metal-bodied units that group and move the cables within the rail channel.

  • Hanging Brackets: Clamps and suspension elements securing the C-Rail to the crane girder or support structure.

  • End Stops and Connections: Parts ensuring safe movement at the rail start/end points and preventing cable sag.

  • Corrosion Resistance: The availability of both Galvanized Steel and Stainless Steel ensures a suitable option for every level of environmental severity, from clean assembly halls to chemical processing areas.



4. Expanded Application Areas



C-Rail systems are utilized beyond traditional crane applications, including:

  • Automation Systems: Rail-guided robots and handling machinery.

  • Conveyor Lines: Continuous moving production belts.

  • Storage Automation: Automated Storage and Retrieval System (AS/RS) cranes.

  • Shipbuilding: Energy transmission in outdoor and harsh environments.



Request a Project-Specific Quote

Please contact us to specify the required length, operating environment (Galvanized/Stainless), and the maximum number of cables needed. We will provide a competitive quote tailored specifically to your project requirements.
