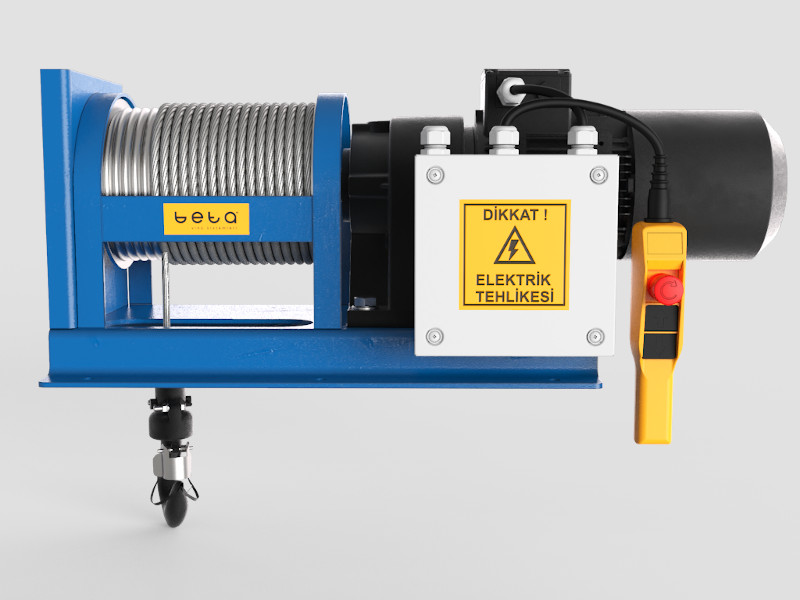

Industrial Freight Lift Motors & Heavy-Duty Hoist Systems

Freight lift motors, specially engineered for industrial freight lifts and basket lifting systems, are the heart of your warehouse and factory operations. Designed to provide steady upward and downward movement, these motors utilize advanced electrical panels and control mechanisms to ensure maximum safety and efficiency.

Whether you need mass-produced solutions or custom-manufactured models tailored to your specific demands, Beta Hoist provides robust lifting technology for all industrial environments.

Why Technical Specifications Matter in Lift Motors

Choosing the right motor is not just about power; it’s about safety and longevity. Key factors to consider:

• Height & Tonnage Relationship: As lifting height increases, gravitational forces and cable weight can lead to tonnage loss.

• Friction Factors: Friction in rail systems can impact actual lifting capacity.

• Professional Advice: For optimal performance, we recommend choosing a higher capacity motor than your minimum load. Example: For a 200 kg load at 10 meters, a 1000 kg capacity motor is the safest choice.

Technical Specifications & Performance Data

We offer three primary models designed for durability and precision. Our motors feature Helical gear reducers and electromagnetic brakes for superior control.

1 Tonne Freight Lift Motor

Perfect for small to medium-sized warehouses and cargo systems.

• Motor: 220-380 V | 50 Hz

• Engine Power: 1 HP 1400 D/D (S3 %30)

• Reducer: Helical Gear (High Durability)

• Rope: 8 mm (6x19 K.Ö)

• Lifting Speed: 10 m/min

• Lifting Height: 5m to 20m options

• Brake: 1 kg Electromagnetic

2 Tonne Freight Lift Motor

Ideal for heavy-duty freight elevators and industrial applications.

• Motor: 220-380 V | 50 Hz

• Engine Power: 2 HP 1400 D/D

• Reducer: Industrial Body Gearbox

• Rope: 10 mm (6x19 K.Ö)

• Lifting Speed: 10 m/min

• Lifting Height: Up to 20m

• Brake: 2.5 kg Electromagnetic

3 Tonne Freight Lift Motor

Our most powerful solution for heavy-load cabins and long-distance lifting.

• Motor: 220-380 V | 50 Hz

• Engine Power: 3 HP 1400 D/D

• Reducer: Reinforced Helical Gear

• Rope: 10 mm (6x19 K.Ö)

• Lifting Speed: 10 m/min

• Lifting Height: Customizable up to 20m

• Brake: 4 kg Electromagnetic

Key Features for Professional Lifting

• Mounted Hoist Design: Easily mounted on steel frame constructions.

• Double Drum Options: For long or wide cabins, twin/double drum motors are preferred to prevent swaying and ensure balanced lifting.

• Safety First: All units include grooved steel drums and integrated control panels.

Get a Custom Quote: Prices vary based on lifting height and specific environmental conditions. [Contact Our Export Department for Pricing] destek@betavinc.com

Frequently Asked Questions About Freight Lift Motors

How do I choose the right capacity for my freight lift?

When choosing a motor, always consider the lifting height and potential friction. As height increases, gravitational force and the weight of the rope itself can reduce effective capacity. A common rule of professional safety is to select a motor with a capacity significantly higher than your average load. For example, if you frequently lift 200 kg at a height of 10 meters, we recommend a 1000 kg capacity motor to ensure long-term reliability.

When should I prefer a double drum (twin drum) motor?

Double drum motors are specifically designed for long or wide lift cabins. They provide two separate lifting points, which prevents the cabin from swaying during movement. This ensures a much smoother and safer ride for your cargo, especially in high-rise industrial applications.

Are the control panels and buttons included with the motor?

Yes. All our freight lift motor sets come as a complete package. This includes the high-torque motor, the helical gear reducer, the electromagnetic brake system, and the integrated control panel with floor buttons. It is a "ready-to-install" solution.

Can these motors be customized for specific projects?

Absolutely. While we maintain a stock of standard 1, 2, and 3-tonne models for fast shipping, we also offer custom manufacturing. We can adjust the rope length, motor power, and drum dimensions according to your specific architectural requirements or industrial needs.

Do you provide international shipping and technical support?

Yes, Beta Hoist ships worldwide. We provide detailed technical drawings and installation guides with every order. Our export department is experienced in international logistics and can provide technical support in multiple languages to ensure your system operates perfectly.
